AT-LP60XUSB

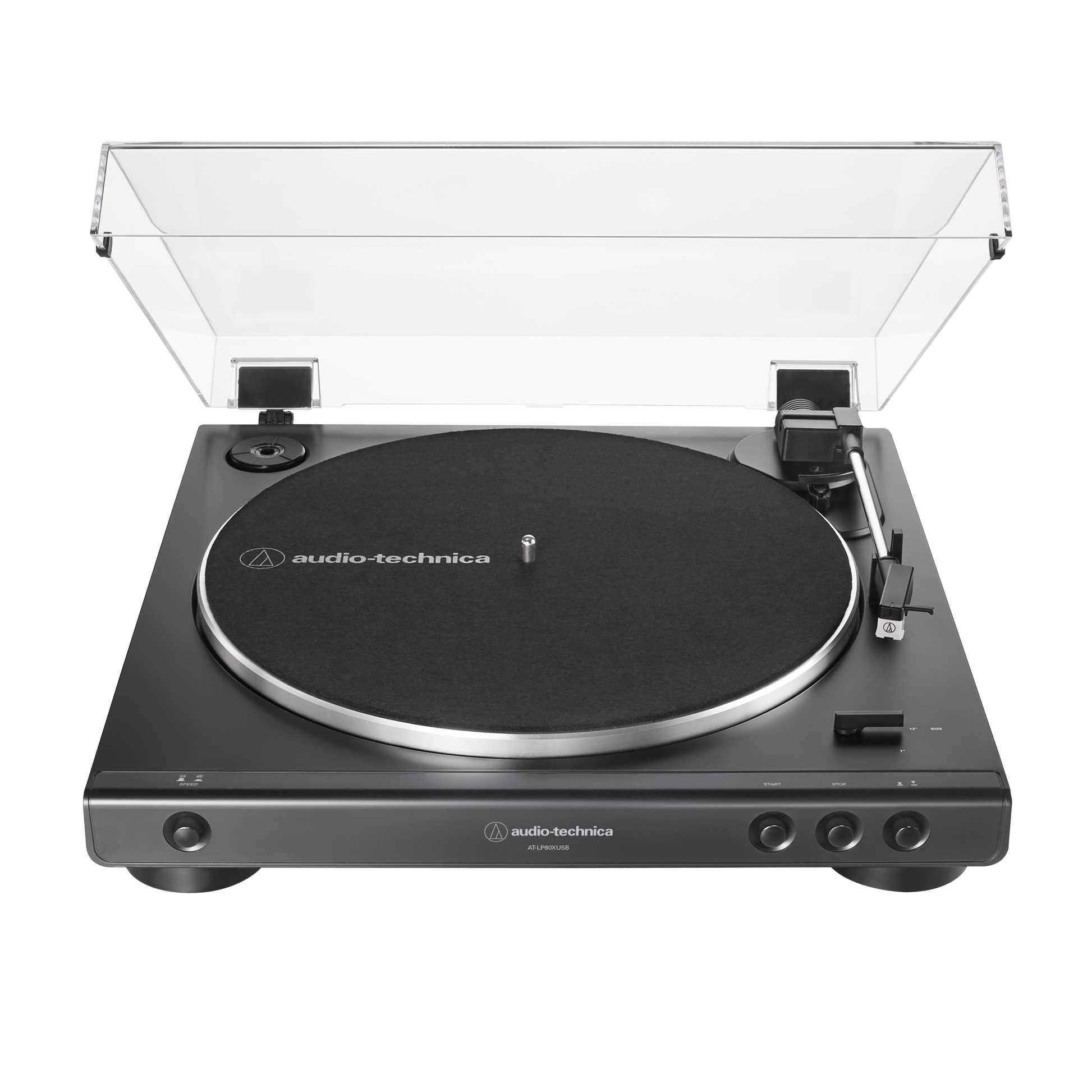

With the AT-LP60XUSB fully automatic belt-drive turntable you can experience your vinyl’s high-fidelity audio directly or convert it to digital. The AT-LP60XUSB plays both 33-1/3 and 45 RPM records and is equipped with a USB output that allows direct connection to your computer.
With the AT-LP60XUSB fully automatic belt-drive turntable you can experience your vinyl’s high-fidelity audio directly or convert it to digital. The AT-LP60XUSB plays both 33-1/3 and 45 RPM records and is equipped with a USB output that allows direct connection to your computer. Just download the free Mac- and PC-compatible Audacity recording software (or software of your choice) and start converting your records to digital audio files. In addition to the USB output, the turntable is also equipped with a detachable RCA output cable (3.5 mm male to dual RCA male) and a built-in switchable phono preamp so you can connect directly to your home stereo, powered speakers, computer and other components, whether they have a dedicated phono input or not.
This updated version of the AT-LP60-USB features a redesigned tonearm base and headshell to improve tracking and reduce resonance. Noise is further reduced by the inclusion of an AC adapter that moves the AC/DC conversion outside of the chassis where its impact on the signal chain is limited.
Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the AT-LP60XUSB’s Dual Magnet™ cartridge with replaceable stylus. The cartridge is integrated into the headshell for assured performance and ease of setup. The original stylus can be replaced by the ATN3600LC (sold separately). For those looking to further enhance your audio experience, the ATN3600LE elliptical stylus can also be purchased.
The turntable comes with a 45 RPM adapter and a removable hinged dust cover.
Specifications
| Turntable | |
|---|---|
| Type | Belt drive turntable, fully automatic |
| Motor | DC servo-controlled |
| Drive Method | Belt-drive |
| Speeds | 33-1/3 RPM, 45 RPM |
| Turntable Platter | Aluminum |
| Wow and Flutter | Less than 0.25% (WTD) @ 3 kHz |
| Signal-to-Noise Ratio | >50 dB (DIN-B) |
| Output Level | Pre-amp “PHONO”: 2.5 mV nominal at 1 kHz, 5 cm/sec; Pre-amp “LINE”: 150 mV nominal at 1 kHz, 5 cm/sec |
| Phono Pre-Amp Gain | 36 dB nominal, RIAA equalized |
| USB Function | A/D, D/A: 16 bit 44.1 kHz or 48 kHz USB selectable |
| Power Supply Requirements | 100 to 240 V, 50/60 Hz, 0.6 A Max. |
| Dimensions | 359.5 mm (14.15") W x 97.5 mm (3.84") H x 373.3 mm (14.70") D |
| Weight | 2.6 kg (5.73 lbs) |
| Accessories Included | Dust cover, Felt mat, Platter (with drive belt), 45 RPM adapter, RCA audio cable (approx. 1.2 m (3.9')), USB cable (approx. 1.9 m (6.2')), AC adapter (approx. 1.5 m (4.9')) |
| AC Adapter | 12 V, 2 A |
| Replacement Stylus | ATN3600LC |
| Notes |
USB operation system requirements PC or Mac with an available USB port (USB1.1 or higher) Windows 7 or above, or Mac OS X or above |
